Battery Management Systems in Energy Storage Systems: Ensuring Efficiency, Safety and Longevity

2023.08.09

As the world increasingly transitions towards renewable energy sources and sustainable power solutions, energy storage systems (ESS) play a pivotal role in maintaining grid stability and optimizing energy utilization. Among the various energy storage technologies available, batteries have emerged as a leading choice due to their scalability, versatility, and efficiency. To harness the full potential of battery-based ESS, sophisticated Battery Management Systems (BMS) have become indispensable components. This article explores the significance of BMS in energy storage systems, their key functions, and their role in ensuring optimal performance, safety, and longevity of battery packs.


1.  The Importance of Energy Storage Systems

Energy storage systems act as a bridge between intermittent renewable energy sources and constant energy demand. They facilitate the efficient utilization of excess energy during periods of low demand, subsequently discharging stored energy during peak demand hours. This flexibility not only enhances grid stability but also reduces reliance on conventional fossil-fuel power plants, promoting a greener and sustainable energy ecosystem.

1.1 Grid Stability and Resilience: Battery energy storage systems (BESS) help maintain grid stability by providing instantaneous response to fluctuations in electricity supply and demand. They can inject power during peak demand periods, absorb excess energy during low-demand periods, and mitigate voltage and frequency variations, ensuring a more resilient and reliable grid.

1.2 Integration of Renewable Energy: As the share of renewable energy sources like solar and wind increases in the energy mix, their intermittent nature poses challenges for grid operators. Battery energy storage enables effective integration of renewables by storing surplus energy when generation exceeds demand and releasing it when generation is insufficient, smoothing out fluctuations and optimizing energy utilization.

1.3 Load Shifting and Peak Shaving: BESS allows for load shifting by storing excess energy during off-peak periods and discharging it during peak demand times. This reduces the strain on the grid during peak hours, avoiding the need for costly infrastructure upgrades and enhancing energy efficiency.

1.4 Energy Time-Shift: Battery storage enables energy time-shifting, which means storing energy when it is inexpensive or available abundantly and discharging it when the cost of electricity is higher. This strategy can help consumers save on electricity bills and optimize energy consumption.

1.5 Grid Support Services: Battery energy storage can provide various grid support services, such as frequency regulation, voltage control, and reactive power compensation. These services enhance grid stability, reduce transmission losses, and improve the overall performance of the electricity grid.

1.6 Backup Power and Emergency Resilience: Battery storage systems offer reliable backup power during grid outages or emergencies. They can serve critical facilities, like hospitals, data centers, and emergency response centers, ensuring continuous operations and public safety.

1.7 Electrification of Transportation: Battery energy storage is a crucial component in electrifying transportation, supporting the widespread adoption of electric vehicles (EVs). Stationary batteries can provide charging infrastructure for EVs, enabling a cleaner and more sustainable transportation sector.

1.8 Microgrid and Off-Grid Applications: In remote areas or regions with unreliable grid access, battery energy storage can enable microgrids or off-grid solutions. By combining renewable energy sources and battery storage, communities and industries can gain access to reliable and sustainable power.

1.9 Demand Response and Energy Management: BESS allows for efficient demand response strategies, where energy-intensive processes can be shifted to off-peak hours, reducing electricity costs and optimizing load management.

2.  The Role of Battery Management Systems (BMS)

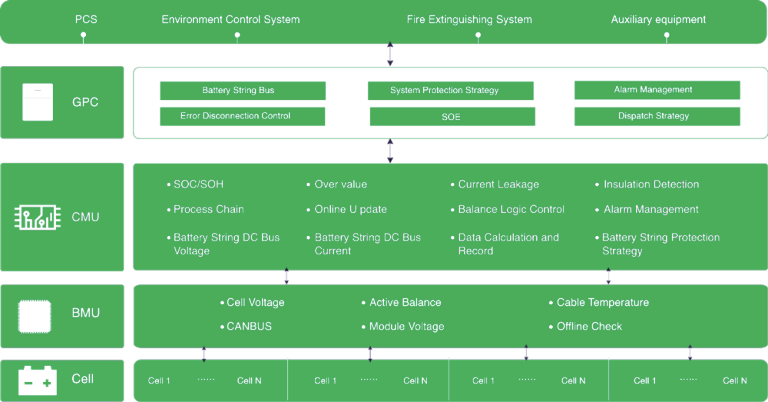

Battery Management Systems are intelligent control units designed to monitor, regulate, and protect battery packs within an ESS. Their primary purpose is to optimize battery performance, ensure uniform cell charging and discharging, prevent overcharging and overdischarging, and manage thermal conditions within the battery. By effectively managing these parameters, BMS significantly impact the overall efficiency and longevity of battery-based energy storage systems.


3.  Key Functions of Battery Management Systems

3.1 State-of-Charge (SoC) Estimation: BMS utilizes advanced algorithms and mathematical models to accurately estimate the amount of energy stored in the battery. Precise SoC estimation is crucial for maximizing battery utilization without risking overdischarge, which can damage the battery cells.

3.2 State-of-Health (SoH) Estimation: BMS continuously monitors the health of individual battery cells, tracking factors such as capacity fade and impedance growth. This information enables early detection of cell degradation, allowing for timely maintenance or replacement, thus prolonging the overall battery lifespan.

3.3 Cell Balancing and Equalization: Battery cells within a pack may experience varying charge and discharge characteristics, leading to imbalances over time. BMS implements balancing techniques to redistribute energy among cells, ensuring uniform performance and avoiding premature failure of weak cells.

3.4 Overcurrent and Overvoltage Protection: BMS actively monitors the current and voltage levels within the battery to prevent dangerous situations such as overcharging or excessive discharge. In case of abnormal conditions, BMS triggers protective measures to safeguard the battery from potential damage or thermal runaway.

3.5 Thermal Management: Maintaining an optimal operating temperature is critical for battery health and performance. BMS monitors cell temperatures and implements cooling or heating measures as required to prevent overheating or freezing of the battery pack.

4.  Design Considerations for Battery Management Systems

4.1 Battery Chemistry and Specific Requirements: Different battery chemistries have unique characteristics, requiring tailored BMS designs to suit their individual needs.

4.2 Scalability and Modular Design: BMS should be scalable to accommodate various battery pack configurations and modular to allow for easy expansion or replacement of faulty components.

4.3 Redundancy and Fault Tolerance: Robust BMS design incorporates redundancy to ensure continuous operation even in the event of component failures, enhancing system reliability.

4.4 Energy Efficiency and Power Consumption: BMS must strike a balance between delivering robust functionalities and minimizing power consumption to maximize the available energy for the load.

4.5 Safety Standards and Compliance: BMS must adhere to industry safety standards and certifications to guarantee safe operation and reduce potential risks associated with battery-based energy storage systems.

5.  Advanced Battery Management Systems: The Future of BESS

As battery technologies continue to evolve, so do the capabilities of Battery Management Systems. Advanced BMS incorporating artificial intelligence, machine learning, and predictive analytics promise to revolutionize battery performance optimization, predictive maintenance, and grid integration. These intelligent systems can adapt to changing energy demands and optimize battery charging and discharging patterns in real-time, ensuring energy efficiency and cost-effectiveness.

In Summary:

Battery Management Systems are indispensable components in modern energy storage systems, providing intelligent control, protection, and monitoring of battery packs. By accurately estimating state-of-charge, health, and implementing balancing techniques, BMS ensure optimal performance, safety, and longevity of batteries, supporting the transition towards a sustainable and resilient energy future. As technology advances, the continuous improvement of BMS will contribute to more efficient and reliable energy storage solutions, driving the global adoption of renewable energy sources.
