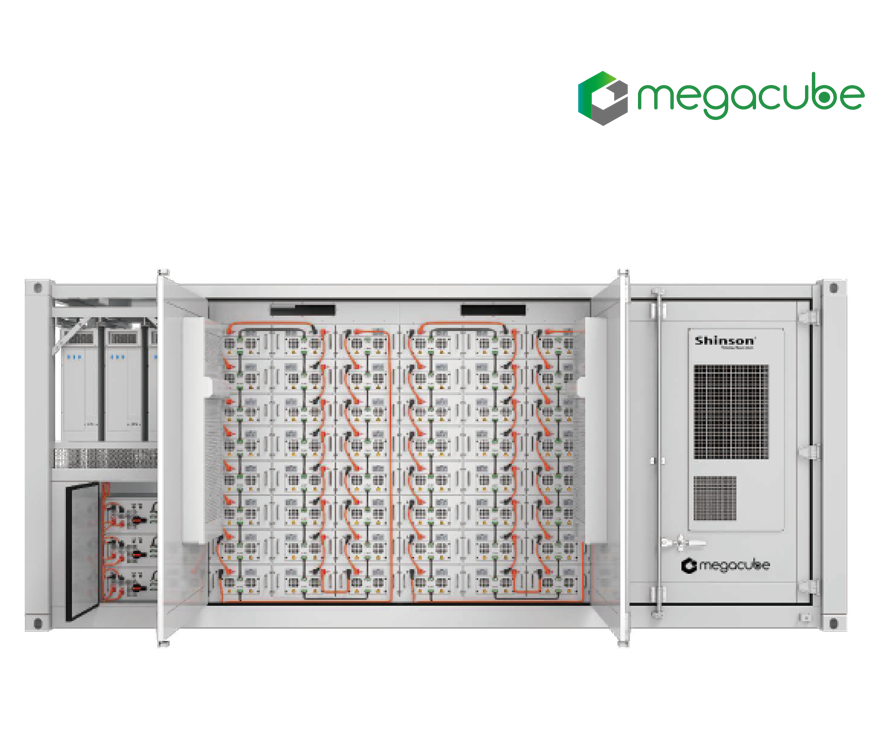

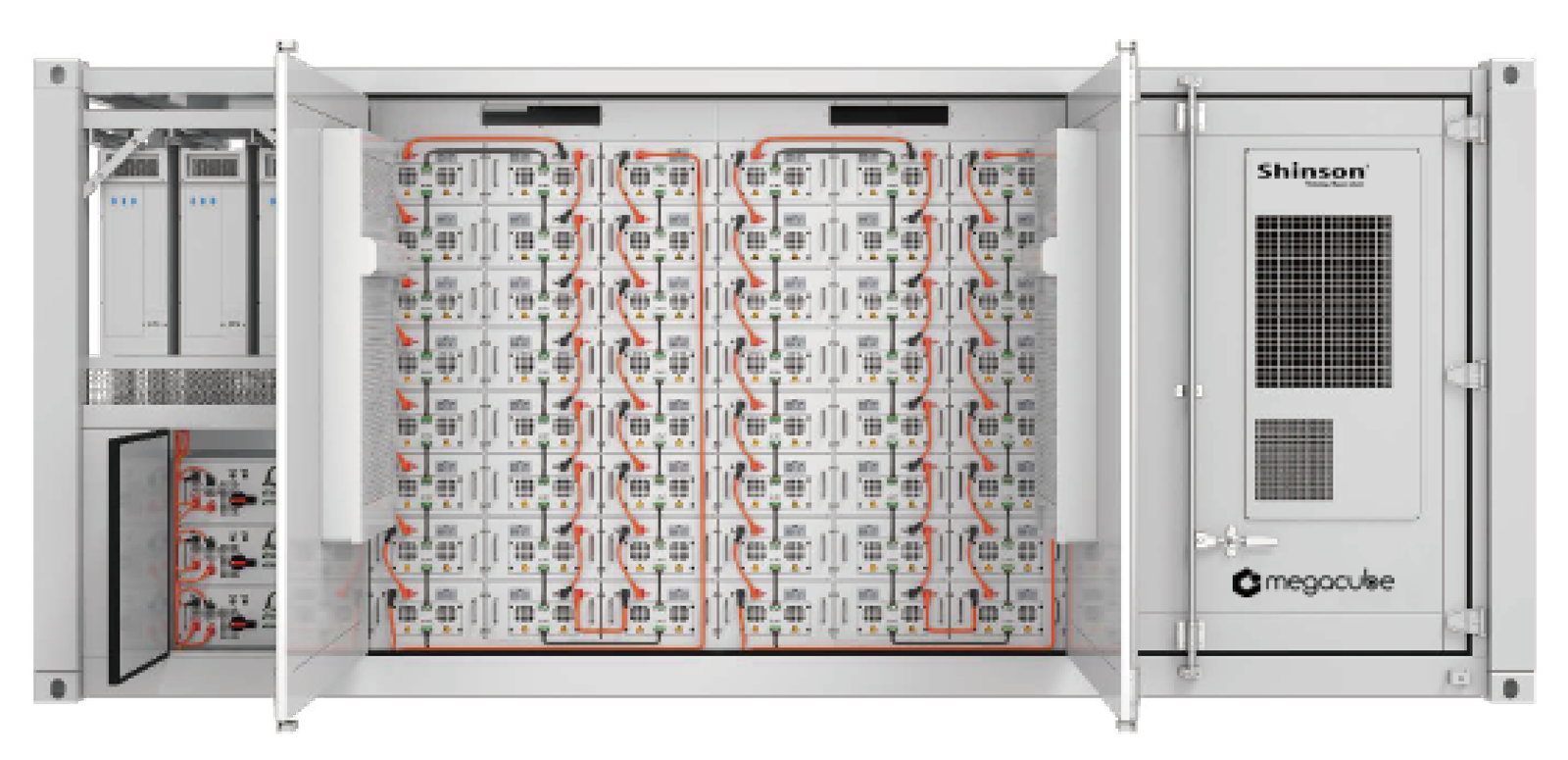

MEGATRON 1MW Battery Energy Storage System ‘s (AC Coupled) are an essential component and a critical supporting technology for smart grid and renewable energy (wind and solar). The MEG-1000 provides the ancillary service at the front-of-the-meter such as renewable energy moving average, frequency regulation, backup, black start and demand response. MEG-1000’s enhance the flexibility, economy, and safety of traditional power systems and significantly improve renewable energy access.
The 1MW BESS systems utilize a 280Ah LFP cell which offers a better price to power ratio. Each BESS is on-grid ready making it an ideal solution for AC coupled commercial/industrial customers. The 20′ systems are designed and shipped with the batteries pre installed utilizing UN 3536 shipping standards Each BESS container is rated at 1000kW AC inverter allowing for easy AC coupling of your renewable energy project (586.5~759VAC optional).
Each commercial and industrial battery energy storage system includes Lithium Iron Phosphate (LiFePO4) battery packs connected in high voltage DC configurations (1,075.2V~1,363.2V). Battery Systems come with 5000 cycle warranty and up to 80% DOD (Depth of Discharge) @ 1C 25℃.
Offered with a 24 x 7 cloud-based monitoring and operation platform supports Mysql database and multiple mobile and PC devices. The battery pack, string and ESS are certified by TUV to align with IEC/UL standards of UL 9540A, UL 1973, IEC 62619 etc.
